Description

Not seeing what you need? Give us a call. As manufactures we have several other options, not just 100 packs.

Available options for Aluminum:

Bulk packaging, bulk pricing
Ten different pitches (5m:1, 5:1, 4m:1, 4:1, .248:1, 3:1, 3.5:1, 2.5:1, WO3:1, 2:1)
Lengths from 7″ to 20″
Material thickness from .040 to .094
Largest diameter 3+1/2″
AND we can customize any of our products to meet your specific needs

Product description	Quantity per box	Price	Quanity per box	Price	Quantity per box	Price
1/4″ (6.35mm) 4:1 pitch 12″ length .040 material thickness					100	$75
5/16″ (7.98mm) 4:1 pitch 12″ length .040 material thickness					100	$79
3/8″ (9.53mm) 4:1 pitch 12″ length .040 material thickness					100	$83
7/16″ (11.11mm) 4:1 pitch 12″ length .047 material thickness					100	$91
1/2″ (12.70mm) 4:1 pitch 12″ length .047 material thickness					100	$96
9/16″ (14.29mm) 4:1 pitch 12″ length .047 material thickness					100	$114
5/8″ (15.88mm) 4:1 pitch 12″ length .062 material thickness					100	$143
11/16″ (17.46mm) 4:1 pitch 12″ length .062 material thickness					100	$156
3/4″ (19.05mm) 4:1 pitch 12″ length .062 material thickness					100	$169
13/16″ (20.64mm) 4:1 pitch 12″ length .062 material thickness					100	$235
7/8″ (22.23mm) 4:1 pitch 12″ length .062 material thickness					100	$300
15/16″ (23.81mm) 4:1 pitch 12″ length .080 material thickness					100	$346
1″ (25.40mm) 4:1 pitch 12″ length .080 material thickness			50	$259	100	$391
1+1/16 (26.99mm) 4:1 pitch 12″ length .080 material thickness			50	$269	100	$407
1+1/8″ (28.58mm) 4:1 pitch 12″ length .080 material thickness			50	$280	100	$423
1+3/16″ (30.16mm) 4:1 pitch 12″ length .080 material thickness			50	$290	100	$439
1+1/4″ (31.75mm) 4:1 pitch 12″ length .080 material thickness			50	$301	100	$455
1+5/16″ (33.34mm) 4:1 pitch 12″ length .080 material thickness			50	$346	100	$523
1+3/8″ (34.93mm) 4:1 pitch 12″ length .080 material thickness			50	$390	100	$590
1+7/16″ (36.51mm) 4:1 pitch 12″ length .080 material thickness			50	$404	100	$611
1+1/2″ (38.10mm) 4:1 pitch 12″ length .080 material thickness	25	$267	50	$417	100	$631
1+9/16″ (39.69mm) 4:1 pitch 12″ length .080 material thickness	25	$276	50	$430	100	$651
1+5/8″ (41.28mm) 4:1 pitch 12″ length .080 material thickness	25	$284	50	$443	100	$671
1+11/16″ (42.86mm) 4:1 pitch 12″ length .080 material thickness	25	$293	50	$457	100	$691
1+3/4″ (44.45mm) 4:1 pitch 12″ length .080 material thickness	25	$301	50	$469	100	$710
1+13/16″ (46.04mm) 4:1 pitch 12″ length .080 material thickness	25	$337	50	$526	100	$796
1+7/8″ (47.63mm) 4:1 pitch 12″ length .080 material thickness	25	$373	50	$582	100	$881
1+15/16″ (49.21mm) 4:1 pitch 12″ length .080 material thickness	25	$383	50	$598	100	$905
2″ (50.80mm) 4:1 pitch 12″ length .080 material thickness	25	$393	50	$613	100	$928
2+1/8″ (53.98mm) 4:1 pitch 12″ length .080 material thickness	25	$417	50	$651	100	$986
2+1/4″ (57.15mm) 4:1 pitch 12″ length .080 material thickness	25	$442	50	$690	100	$1,044

Additional information

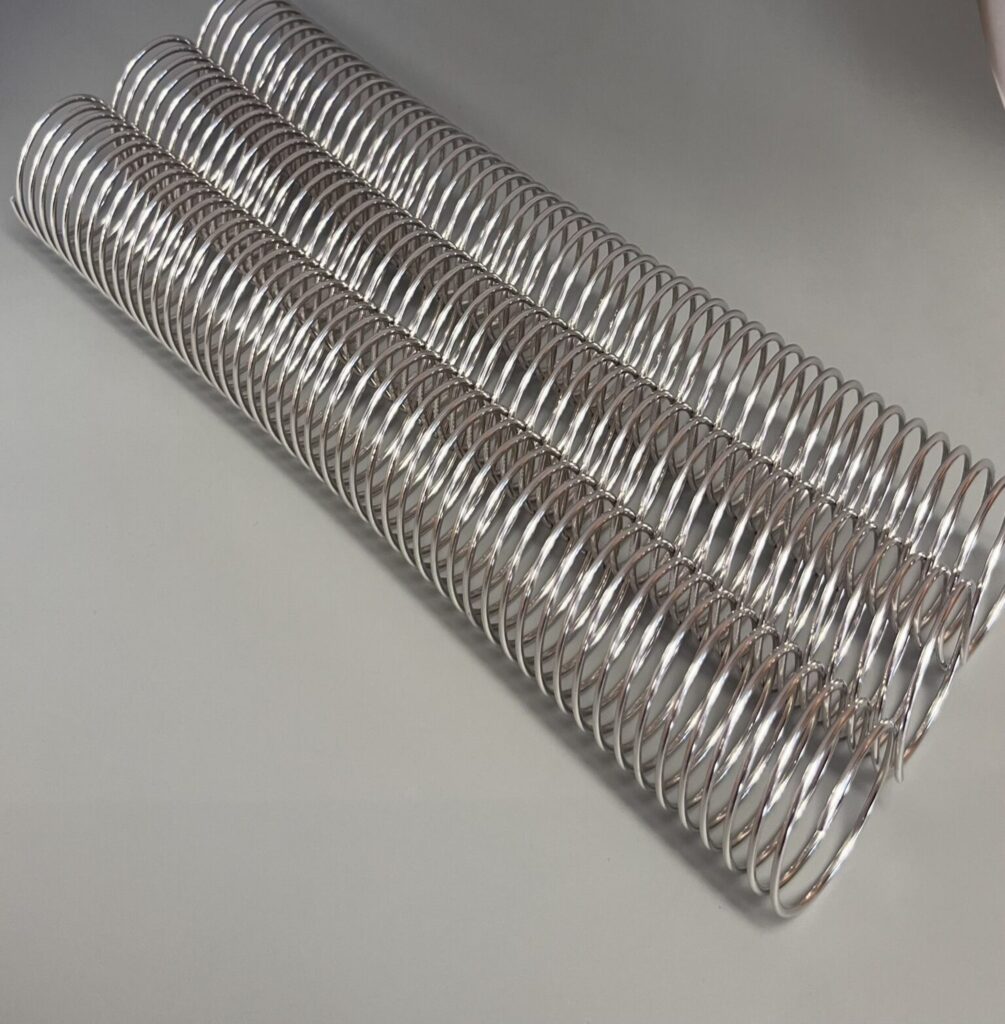

PEL Aluminum Spirals	Like all our products, our Spiral Aluminum coils are made in the USA. If you are not seeing what you need, give us a call. We have ten different pitches. We also offer bulk pricing and bulk packaging. Largest diameter 2.75 inches (70mm). Give us a call to find out more.
